Name:E/F Flange Injection Mould
Name:Electrofusion Flange Injection mould
Mould Type:Original processing, Inlay frame mould
Follow Standard:EN1555.3 & EN12201.3
Mould Cavity:Single or multiple cavities
Cavity Material:P20, 40cr Forge, 718H
Design Software:CAD,ProE,UG etc.
Mould Life:30,0000-100,0000 cycles
Inject Material:PE,PP-R,PE-RT
Mould Texture:As per sample or Film
Runner:Hot runner, cold runner
Surface Treatment:Nickel or Chrome plating, or QPQ
Delivery Time:45-60 days
Package:Polywood case

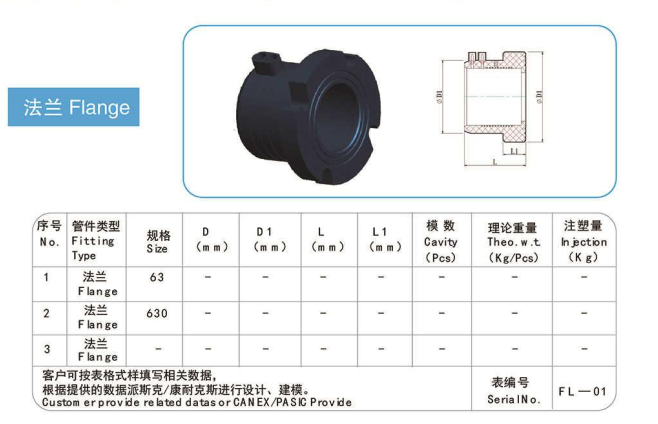

E/F Flange Mould


Electrofusion-Flange-Mould


Electrofusion Flange Injection Mould


Professional and experienced design team:

The electrofusion fitting has its special properties.

It is not only a plastic product, but also functions as a connection by applying a certain current and voltage

to both ends of the heating wire implanted on the inner wall of the pipe fitting to melt the plastic through heat.

The design of electrofusion fittings needs to consider: the application field of the product, the geometric size and

strength of the product, the core is the design of the electrofusion welding process,

such as: the diameter of the copper wire, the pitch of the wiring, the current and voltage of the welding, etc.,

in the design for many years We have accumulated relevant parameter data.



Reasonable water transportation layout:

Reasonable water transportation layout of molds is the key to improving product production efficiency.
